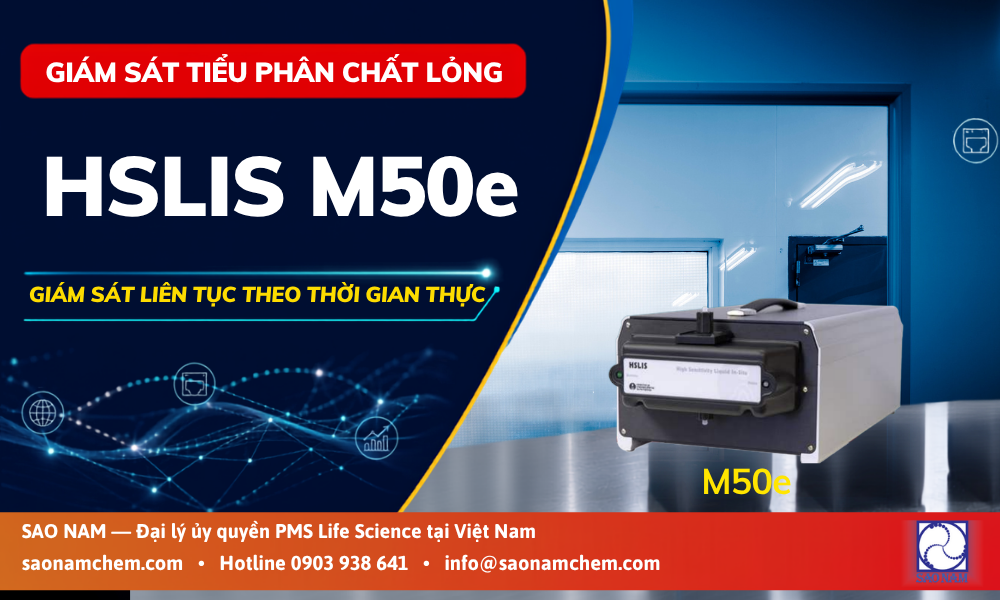

HSLIS M50e – Máy Đếm Tiểu Phân Trong Chất Lỏng Trực Tuyến

Máy đếm tiểu phân trực tuyến cho ngành hóa chất và nước siêu tinh khiết

Máy đếm tiểu phân trực tuyến có độ nhạy từ 0,05 µm, phù hợp theo dõi dài hạn chất lượng nước khử ion và phát hiện sớm biến động trong hệ thống phân phối.

Video: Máy đếm tiểu phân quang học hoạt động như thế nào?

Hỗ trợ HSLIS M50e tại Việt Nam

SAO NAM hỗ trợ đánh giá ứng dụng, lựa chọn model, cấu hình đường mẫu, cung cấp thiết bị chính hãng, hướng dẫn lắp đặt, đào tạo, hiệu chuẩn, bảo trì và xử lý kỹ thuật theo phạm vi dự án và dịch vụ.

HSLIS M50e tại Việt Nam

HSLIS M50e cung cấp dữ liệu tiểu phân liên tục trong nước khử ion và nước siêu tinh khiết, với dải 0,05–0,2 µm, bốn kênh và khả năng kết nối mạng. Giải pháp phù hợp cho giám sát dài hạn, đánh giá lọc, cảnh báo sự kiện và cải tiến quy trình. SAO NAM hỗ trợ đánh giá điểm đo, lựa chọn cấu hình, cung cấp, lắp đặt, hiệu chuẩn, bảo trì và xử lý kỹ thuật thiết bị PMS tại Việt Nam.

HSLIS M50e Particle Counter for Continuous particle monitoring in critical liquids

HSLIS M50e is a high-sensitivity, in-situ liquid particle counter from Particle Measuring Systems. It is designed for continuous, real-time monitoring in deionized and ultrapure water. The published measurement range is 0.05–0.2 µm, with four fixed channels at 0.05, 0.1, 0.15, and 0.2 µm. This configuration gives process engineers a direct view of particle changes at a distribution loop, filter, recirculating bath, chemical-delivery line, packaging operation, or point of use.

Continuous monitoring is valuable because a grab sample provides information only for one moment. An online counter can show gradual deterioration, a sudden contamination event, a filter transition, or the effect of maintenance. Trending does not automatically identify the root cause, but it provides time-correlated evidence that can be compared with pressure, flow, valve activity, chemical changes, tool operation, and maintenance records.

Flow architecture and counting interpretation

The optimum main-stream flow for this model is 100 mL/min ±10%, while the documented sample volume through the optical sensing path is 0.25 mL/min. The counter measures 100% of this diverted sample volume. This statement must not be interpreted as measuring the entire process stream. Stable flow, suitable pressure control, clean tubing, correct orientation, and an appropriate installation point are required for representative results.

The maximum recommended concentration is 10,000 counts/mL. PMS states greater than 90% accuracy, corresponding to less than 10% coincidence loss, at that maximum recommended concentration. If the true concentration exceeds the specified range, multiple particles may cross the sensing region together and cause undercounting or incorrect size assignment. Bubbles can also produce optical responses, so bubble control and installation design are essential.

Technical configuration and integration

HSLIS M50e communicates through Ethernet and provides five 4–20 mA outputs: four particle channels and one instrument-status output. RS-232 is provided for setup and diagnostics rather than normal process data. These interfaces support integration with FacilityNet, SCADA, PLC, or other plant monitoring architecture, subject to the selected configuration and engineering design.

FacilityNet can centralize multiple instruments, display real-time and historical plots, present tabular and statistical process-control information, and support excursion notifications. Alarm limits should be established from process knowledge, baseline data, measurement capability, and site risk assessment. A single generic alarm value is rarely appropriate for every chemical, location, or operating state.

Model selection and chemical compatibility

M50e offers the lowest detection threshold in the e-Series and uses a wetted-material set intended for DI-water applications. It should not be assumed suitable for corrosive chemicals without a documented compatibility review. Published wetted materials are Delrin®, Kalrez® 4079, Kel-F®, Teflon®, Viton®, and fused silica. Compatibility must be reviewed against the exact liquid, concentration, temperature, exposure duration, cleaning agent, tubing, fittings, seals, and safety requirements. The stated sample-temperature capability does not override the lower limit of another system component.

Calibration materials are traceable to the US National Institute of Standards and Technology and/or Japanese Industrial Standards according to the PMS specification. A complete monitoring program should also define installation qualification, baseline verification, alarm review, cleaning, preventive maintenance, calibration intervals, data retention, and response to an out-of-tolerance result.

Support from SAO NAM in Vietnam

SAO NAM is an authorized Particle Measuring Systems sales and service center in Vietnam. SAO NAM supports application assessment, model selection, official equipment supply, installation planning, operator training, calibration, preventive maintenance, troubleshooting, and lifecycle review, depending on the supplied configuration, project scope, instrument condition, parts availability, and service agreement.
